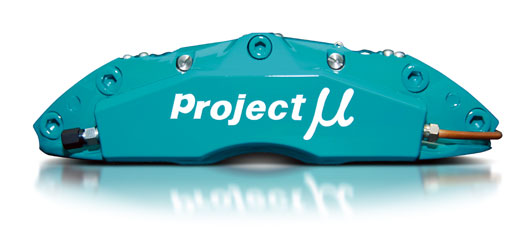

This basic forged-aluminium model or the ultimate in brake performance and the finest detail at an affordable price.
Caliper body size: Total length 282.8mm, Total width 156.25mm, Total height 72.3mm
* Excludes the protrusion of the brake line attachment section.
- 車検対応品
- 鍛造製法
| Materials | Aluminium alloy |
| production methods | Forged |
| Surface finishing | Hard alumite with powder coating |
| Piston diameter | 41mm |
| Rotor dimensions | 345mm×32mm/355×32mm |
| No. of pads | 4Pads |
■CALIPER KIT
Calliper, Calliper aluminium bracket, Brake pad, 2Piece rotor, Teflon brake line, Brake pad spring and bolts.
* l You can select caliper surface treatment from between powder coat and alumite, so you can provide a uniform appearance with the front caliper.
* l When mounting, you must machine the genuine disc back plate.
RED [WHITE]
ORANGE [BLACK]
YELLOW [BLACK]
SILVER [BLACK]
BLACK [WHITE]
| Surface finishing | Powder coating with clear heat-resistant coating |
| Date of delivery | In about 30 days |
| PRICE (Kit) | KIT PRICE + ¥30,000 |
※1 [カッコ]内のカラーは、Project μロゴのカラーとなります。
● カラーオーダーの場合、ローターのベルハウジングのカラーはブラックアルマイトのみとなります。
● モニター表示の為、実際の色と異なる場合がございます。予めご了承ください。
-
RACING CALIPER 2Pistons REAR
High-performance rear dedicated model designed for strengthening rear brake places emphasis on balance with front brake.
-
RACING CALIPER 4Pistons MINI
This compact model distils the outstanding strength and functionality of racing callipers into k-car size.
-
RACING CALIPER 4Pistons×4Pads
Regularly used in races, this high-performance model boasts a body cut from high-strength billet aluminum to provide ever-reliable performance.
-
RACING CALIPER 6Pistons
The ultimate model: this item features a high-strength body cut from aluminium, unadulterated high performance and quality, as well as braking capability.
-
FORGED SPORTS 4Pistons MINI
Forged 4-piston caliper kit is the ideal size for compact cars.
-
FORGED SPORTS 4Pistons SLIM
From the street to the circuit, this specialist compact-car model can handle it all.
-
FORGED SPORTS 4Pistons×4Pads SLIM
This modelﾕs sleeker body means much less wheel interference, allowing it to be used with seventeen-inch wheels and making it ideal for customised cars.
-
FORGED SPORTS 6Pistons SLIM
A new six-piston system has been launched to meet the demand for better stopping power from the popular slim forged body.
-
FORGED SPORTS 4Pistons×4Pads SIDE-B
Rear caliper kit for drifting that controls the foot and parking brakes with one caliper.
