Designed for light to mid-weight vehicles.
Total length : 275.0mm / Total width : 140.0mm ※ / Total height : 71.6mm
※Excludes the protrusion of the brake line attachment section.
- 車検対応品
- 鍛造製法
- 欧州車適合設定
| Materials, production methods | Aluminium alloy/Forged |
| Surface finishing | Hard alumite with powder coating |
| Piston diameter | 38mm |
| Rotor dimensions | 300×25mm |
| No. of pads | 2Pads / 1Caliper |
| FRONT | ¥273,000 |
※NS-ZERO pads are included as standard. TYPE NS, TYPE HC-CS, TYPE HC+, RACING-N1, RACING777 and RACING999 pads are also available.
※When mounting, you must machine the genuine disc back plate.
For Domestic cars
For Import cars
■CALIPER KIT
Calliper, Calliper Aluminium Bracket, Brake Pad, 2Piece Rotor, Teflon Brake line, Pad Support Spring, All bolts
RED [WHITE LOGO]
ORANGE [BLACK LOGO]
YELLOW [BLACK LOGO]
SILVER [BLACK LOGO]
BLACK [WHITE LOGO]
| Surface finishing | Powder coating with clear heat-resistant coating |
| Date of delivery | In about 30 days |
| PRICE (Kit) | KIT PRICE + ¥30,000 |
● The color of bell housing are only black.
● These images might be different from real color.
Product specifications, prices, manufacture and sales are subject to change or termination without notice.
-
RACING CALIPER 4Pistons×4Pads
We offer the ideal configuration of one pad per piston through eight synchronized pads, thus enabling optimal braking. Our racing calipers are made from machined super-hard aluminum (this method known as “billeting”), and the use of hard alumite on the surface serves to highlight the beautiful form.
-
RACING CALIPER 6Pistons
The ultimate model: this item features a high-strength body cut from aluminium, unadulterated high performance and quality, as well as braking capability.
-

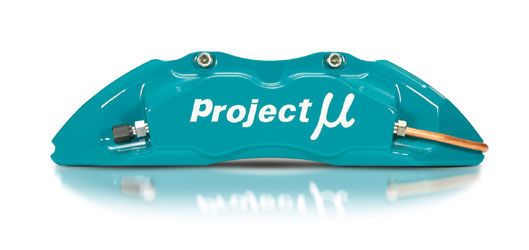

FORGED SPORTS 4Pistons×4Pads SLIM
The slim body greatly reduces caliper interference with the wheels, thus making the 4Pistons×4Pads SLIM model ideal for customizing.
-
FORGED SPORTS 4Pistons×4Pads
We offer the ideal configuration of one pad per piston through eight synchronized pads, thus enabling optimal braking. What is more, the forged aluminum helps increase strength while decreasing cost.
-
FORGED SPORTS 6Pistons SLIM
The 6 Pistons SLIM caliper combines the popular forged slim-body design with incredible stopping power.
-
FORGED SPORTS 4Pistons×4Pads SIDE-B
Rear caliper kit for drifting that controls the foot and parking brakes with one caliper.
